Non-Destructive Testing (NDT) Laser Preparation Services in Alberta & Western Canada
Laser Technology
Professional Laser Surface Cleaning for Non-Destructive Testing (NDT) Applications
Power Laser provides advanced laser cleaning services for Non-Destructive Testing (NDT) preparation across Alberta and Western Canada. Our industrial laser systems remove rust, oxidation, coatings, oil residues, and surface contaminants with precision — ensuring surfaces are perfectly prepared for ultrasonic, radiographic, magnetic particle, and dye penetrant inspections.
We serve projects throughout:
How It Works
What Is Laser Cleaning for NDT?
Laser cleaning for NDT is a high-precision, non-contact method of preparing surfaces and welds for inspection. Proper surface cleaning is critical to ensure accurate testing results and the detection of defects in materials, welds, and structural components.
Laser systems remove:
Rust and corrosion
Mill scale and oxidation layers
Paint, coatings, and primers
Oil, grease, and industrial residues
Dirt, debris, and surface contamination
This controlled cleaning ensures reliable NDT results while preserving the integrity of the substrate.
Traditional Methods
Challenges with Traditional Surface Preparation Methods
Grinding & Mechanical Cleaning
- Labor-intensive and time-consuming
- Risk of substrate damage
- Inconsistent cleaning
Abrasive Blasting
- High dust generation
- Media contamination
- Cleanup intensive
Chemical Cleaning
- Hazardous waste and fumes
- Extended drying time
- Environmental concerns
Laser cleaning offers a safe, efficient, and environmentally friendly alternative for NDT preparation.
Laser Cleaning vs Traditional Methods
| Laser Cleaning | Mechanical / Chemical Methods |
|---|---|
| ✔ Non-contact & precise | ✖ Aggressive surface impact |
| ✔ Minimal environmental impact | ✖ High dust and hazardous waste |
| ✔ No abrasive residues | ✖ Labor and cleanup intensive |
| ✔ Cleaner work areas | ✖ Risk of substrate damage |
Laser cleaning is ideal where accurate NDT inspection and material integrity are crucial.
Use Cases
Applications of Laser Cleaning for NDT
Coverage Area
Service Areas
We provide dedicated laser cleaning preparation services in:
- NDT Laser Preparation in Edmonton
- NDT Laser Preparation in Calgary
- NDT Laser Preparation in Fort McMurray
- NDT Laser Preparation in Red Deer
And throughout Alberta and Western Canada.
Based in Edmonton, Alberta, Power Laser provides mobile laser cleaning for NDT preparation across Alberta, British Columbia, Saskatchewan, and Manitoba. Our on-site services ensure surfaces are inspection-ready without delays or contamination risks.
Preparation
Why Surface Cleaning Is Critical for NDT
In the world of Non-Destructive Testing (NDT), the surface of a component is the primary interface between the material and the diagnostic tool. If that interface is compromised by contaminants—such as rust, scale, grease, or old coatings—the entire inspection can be invalidated.
Here is why meticulous surface cleaning is the “make or break” step for NDT:
Eliminating "Masking" (False Negatives)
Bridge Effect: Thick paint or heavy oxidation can physically “bridge” over a surface-breaking crack.
Inhibiting Penetration: In Liquid Penetrant Testing (PT), even microscopic amounts of oil or moisture inside a crack can prevent the penetrant from entering, leaving the defect invisible during the dwell time.
Preventing "False Indications" (False Positives)
Surface Geometry: Flakes of rust or dried chemical residue can trap magnetic particles or dye penetrants, mimicking the appearance of a crack or porosity.
Signal Noise: In Ultrasonic Testing (UT) or Eddy Current Testing (ET), surface roughness and debris create “noise” in the signal, making it difficult for the technician to distinguish between a legitimate flaw and surface interference.
Ensuring Proper Sensor Coupling
Ultrasonic Continuity: UT requires a liquid couplant to transmit sound waves. If the surface is covered in loose scale or uneven coating, the sound energy scatters or reflects prematurely, resulting in a total loss of data for the underlying material.
Electrical Conductivity: For Eddy Current (ET), the probe must be at a consistent “lift-off” distance. Variations in coating thickness or the presence of non-conductive debris cause fluctuations that can hide real defects.
Laser-based cleaning provides repeatable, precise results that improve inspection accuracy and ensure NDT reliability.
Benefits
Benefits of Laser Cleaning for NDT
In the high-stakes world of Non-Destructive Testing (NDT), the quality of the inspection is only as good as the surface preparation. Laser cleaning has rapidly become the preferred “gold standard” for prep because it addresses the technical flaws inherent in mechanical and chemical cleaning.
Here is why laser technology is a game-changer for NDT:
Zero "Surface Smearing"
Mechanical methods like grinding, sanding, or wire brushing can actually hide the very defects you are trying to find. The friction and pressure can “smear” or peen a thin layer of metal over microscopic surface-breaking cracks.
✔ The Laser Advantage: Because the process is non-mechanical and non-contact, it vaporizes the coating without touching the metal. This ensures that cracks remain “open” and fully accessible to liquid penetrants or magnetic particles.
Elimination of Chemical Interference
Traditional solvent-based or acid-based strippers can leave behind a microscopic film or residue.
✔ The Laser Advantage: Lasers use light to achieve a “hospital-clean” surface. There are no residual chemicals to react with NDT dyes or inhibit the capillary action required for Penetrant Testing (PT).
Preservation of Surface Profile
Many NDT methods, particularly Ultrasonic Testing (UT) and Eddy Current (ET), rely on consistent “lift-off” or signal coupling.
✔ The Laser Advantage: Abrasive blasting (sand/grit) can pit or profile the metal, creating “signal noise” that makes it harder for technicians to identify real flaws. Lasers remove the rust or paint while leaving the original surface profile perfectly intact, leading to much cleaner, more accurate data.
Selective "Precision" Cleaning

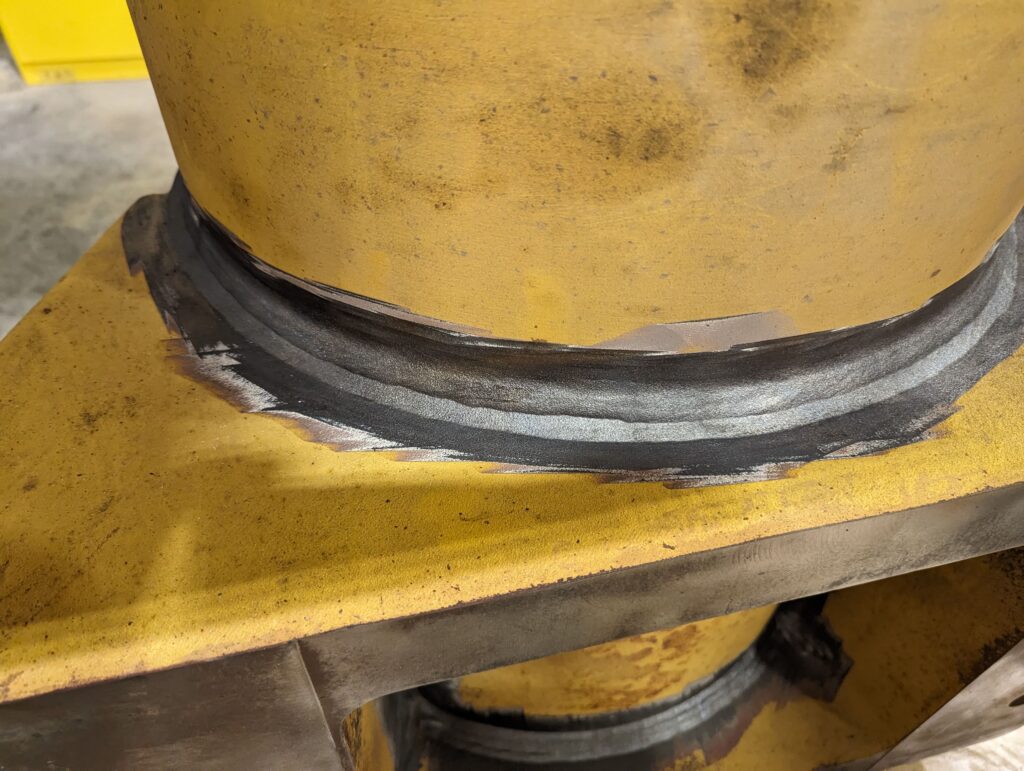

In many NDT scenarios, you only need to inspect the weld bead and the Heat Affected Zone (HAZ).
✔ The Laser Advantage: You can calibrate a laser to clean a precise 2-inch strip along a weld. This saves immense time compared to blasting an entire component or trying to tape off sections for chemical stripping.
Instant Inspection Readiness
Traditional prep often involves a “wait time”—waiting for chemicals to dry, waiting for dust to settle, or spending hours sweeping up spent blast media.
✔ The Laser Advantage: The moment the laser passes over the surface, it is dry, cool, and ready for the technician. This “on-the-fly” preparation is ideal for mobile field inspections where every hour of downtime is costly.
Integration
Automation & Production Line Integration
Laser NDT preparation systems can be integrated into automated workflows.
Benefits include:
Our Clients
Who We Work With
Power Laser supports:
We ensure surfaces are optimally prepared for reliable, accurate NDT inspections.
On-Site Service
Mobile NDT Surface Cleaning Services
Power Laser provides fully mobile laser cleaning services for NDT preparation across Alberta and Western Canada. On-site cleaning reduces downtime and ensures surfaces are ready for inspection without transporting heavy components.
We service:
- Manufacturing plants
- Industrial yards
- Construction sites
- Oil & gas facilities
- Remote and field locations
Mobile capability reduces downtime and supports field-based projects.
Our Advantage
Why Choose Power Laser?
- Advanced industrial laser technology
- Mobile on-site capability
- Experienced in NDT preparation environments
- Eco-conscious, chemical-free surface cleaning
- Serving Alberta and Western Canada
- Focused on precision, inspection accuracy, and safety
Our process supports strict inspection standards and ensures reliable defect detection in critical industrial applications.
We prioritize quality, safety, and measurable results.
Contact Us
Get a Free NDT Surface Preparation Quote in Alberta
If your project requires professional laser cleaning for NDT preparation, contact Power Laser today.
Our team will assess your surfaces and recommend the most effective laser cleaning solution.
Contact us to schedule a consultation.
FAQ
Frequently Asked Questions
Unlike grinding or wire brushing, laser cleaning does not "smear" or peen the metal. Mechanical cleaning can physically push a thin layer of metal over a crack, effectively hiding it from the inspector. Laser cleaning vaporizes the contaminant without mechanical force, ensuring cracks remain open and visible for the inspection.
No. Industrial lasers are tuned to the specific "ablation threshold" of the coating (paint, rust, or oil). The laser energy is absorbed by the contaminant but reflected by the underlying metal. This ensures the surface profile and structural integrity of the component remain unchanged, which is critical for maintaining NDT certification standards.
Laser cleaning provides a superior surface finish for Ultrasonic Testing by removing loose scale and uneven coatings that cause signal scattering. By creating a smooth, clean interface, it ensures better transducer coupling and reduces "signal noise," allowing for a more accurate measurement of wall thickness and internal flaws.
Yes. In fact, it is one of the most effective methods for PT prep. Because it is a "dry" process with no chemicals or abrasive media, there is no risk of residue or grit clogging a crack. The laser leaves the defect cavity completely empty, allowing the penetrant to achieve maximum capillary action.
Modern fiber laser systems are highly mobile and can be deployed for on-site inspections in industrial zones, refineries, or pipeline sites. Mobile units allow technicians to prep critical welds or high-stress areas in situ, eliminating the need to transport large components to a shop for cleaning.
No. Laser cleaning is a purely thermal/optical process. Unlike chemical stripping, which can leave a microscopic film that interferes with NDT chemicals, the laser leaves a "hospital-clean" surface that is immediately ready for the application of developers or magnetic particles.
Laser systems effectively remove a wide range of contaminants that interfere with inspections, including:
- Rust and mill scale
- Industrial paints and primers (Epoxy, powder coats)
- Grease, oil, and carbon soot
- Heat tint and oxides from welding
Yes. Power Laser is fully mobile and serves projects across Alberta and Western Canada.
